Microbiologically Influenced Corrosion (MIC) in Fountain Piping: An Invisible Enemy 'Burrowing' Inside Pipe Walls

Q: How significant are typical MIC incident losses?

Florida resort case: SS304 stainless steel piping developed 17 perforations in 3 years, with replacement to 316L costing approximately $180,000. Southern China case: 32% of inspected areas had wall thinning exceeding 30% (most severe at 53%, approaching perforation), with 150 m of pipe replacement + UV-C sterilization remediation costing approximately ¥450,000. NASA experience shows that a properly designed prevention program can reduce MIC risk by more than 90% — prevention investment is far lo

Q: Can the submersible pump technology really prevent microbiologically influenced corrosion?

Yes. The submersible pump technology operates fully submerged, which removes the fundamental trigger of microbiologically influenced corrosion at the design level: first, MIC-Resistant Materials — Optional duplex stainless steel and specialized coatings resist pitting perforation; second, Stagnation-Free Flow Path — Reduced biofilm adhesion sites; and third, Fully Sealed Unit — Fewer metal-water interfaces, more controllable with chlorination. Instead of managing symptoms, these three design fea

Bacteria ‘burrowing’ inside pipe walls — perforation in as little as 6 months

Microbiologically influenced corrosion (MIC) is the most insidious and dangerous form of corrosion in fountain piping systems. Unlike uniform corrosion, MIC produces extremely rapid localized pitting rates through the formation of microscopic “bioelectrochemical cells” on metal surfaces — several millimeters per year, 10-100 times that of uniform corrosion. Fountain circulating water systems provide a perfect breeding environment for MIC: water temperature 25-35°C (optimal bacterial growth range), continuously flowing nutrients, abundant metal surfaces, and discontinuous flow dead spots.

microbiologically influenced corrosion is not an inevitable fate of traditional high-pressure pumps — the submersible pump technology, with its fully submerged architecture, removes this trigger at the design stage.

In-Depth Technical Analysis

Biological Mechanisms: The Invisible “Corrosion Guerrillas”

Fountain circulating water systems provide a perfect MIC breeding environment — water temperature 25-35°C (optimal bacterial growth range), continuously flowing nutrients (organic matter/minerals), abundant metal surfaces (pipe walls/pump bodies), and discontinuous flow dead spots (blind pipes/low-velocity zones). The primary corrosion-causing bacteria include three major groups: SRB, IOB, and APB.

SRB (Sulfate-Reducing Bacteria)

The most destructive MIC bacterial group. Under anaerobic conditions, SRB reduce sulfates in the water to hydrogen sulfide (H₂S), which reacts with metal to form iron sulfide (FeS) and atomic hydrogen. Atomic hydrogen penetrates the metal crystal lattice, causing hydrogen-induced cracking (HIC). Characteristic products: black flocculent deposits visible on pipe inner walls (FeS deposits), rotten egg odor in the water (H₂S). After SRB “colonize” pipe welds and low-velocity zones, they can cause localized pits 2-5 mm deep within 3-6 months.

IOB (Iron-Oxidizing Bacteria)

IOB oxidize ferrous ions to ferric ions, forming brown iron oxide tubercles on pipe inner walls. Beneath the tubercles, oxygen concentration cells form — the exterior of the tubercle is oxygen-rich and acts as the cathode, while the oxygen-depleted area beneath the tubercle acts as the anode. Metal at the anode zone continuously dissolves, producing deep localized corrosion. Appearance of IOB tubercles: red/brown raised nodular deposits on pipe inner walls, with deep pits typically found underneath when broken open.

APB (Acid-Producing Bacteria)

APB produce organic acids (acetic, lactic, butyric, etc.) through metabolism, lowering the local environmental pH on metal surfaces to 3-4. Low pH directly attacks the passivation film on metal surfaces, particularly for stainless steel (which relies on the surface Cr₂O₃ passivation film for protection) — once the passivation film is destroyed, rapid localized corrosion occurs. APB often “fight in coordination” with SRB — APB lower the pH, creating a more favorable environment for SRB.

From an engineering perspective, this is exactly where a submerged architecture changes the picture: the submersible pump technology with its “MIC-Resistant Materials” design acts directly on the failure chain described above, making the problem structurally unlikely to occur instead of requiring post-event repairs.

Detection and Prevention Key Points

Conventional water quality testing (pH, residual chlorine, turbidity) cannot reveal MIC risk. MIC detection requires specialized methods: ATP bioluminescence (recommended control <100 RLU), qPCR quantitative PCR (detecting SRB/IOB/APB gene abundance), and coupon methods (metal coupons suspended for 60-90 days before analysis).
NACE SP0200 standard recommends avoiding blind pipes in piping design (blind pipe length should not exceed 5 times the pipe diameter).
Use stainless steel with molybdenum content ≥2.5% (316L or above), monitoring bacterial activity monthly.
Florida resort case: cost to replace all SS304 piping with 316L was approximately $180,000.

On a whole-life-cycle basis the conclusion is the same: projects that choose the submersible pump technology see the “Stagnation-Free Flow Path” advantage converted into measurable savings on electricity, maintenance and downtime year after year.

Standards & Compliance

NACE SP0200 standard recommends avoiding blind pipes in piping design (blind pipe length should not exceed 5 times the pipe diameter), using stainless steel with molybdenum content ≥2.5% (316L or above), and monitoring bacterial activity monthly. NASA experience shows that a properly designed prevention program can reduce MIC risk by more than 90%.

International Case Studies

🇺🇸 1. Florida Resort — 17 Perforations in SS304 Stainless Steel Piping

Project Background: The fountain landscape piping system at a large resort in Florida, USA. The resort is located near Orlando, with a warm, humid climate and an average annual temperature of 22-28°C. The fountain piping used 304 stainless steel (SS304), installed both underground and overhead. Leaks began appearing after 3 years of operation.

Equipment Setup: Approximately 500 m of 304 stainless steel piping (DN50-DN150), welded connections, wall thickness approximately 2-3 mm. Fountain water was recirculated with periodic chemical chlorination.

Root Cause: SS304 has 0% molybdenum content (316L contains 2-3% molybdenum), with a pitting resistance equivalent number (PREN) of 18-20 (316L PREN ≥25), insufficient for MIC environments. No post-weld passivation treatment was performed on pipe welds. Some pipes were designed as blind pipes — stagnant water at the blind ends became ideal SRB colonization sites. Water temperature of 25-32°C + organic matter continuously provided nutrients for bacteria.

Consequences & Losses: In the 3rd year of operation, 17 perforations and severe wall thinning areas were discovered, with pipe wall thickness reduced from 2-3 mm to 0.3-0.5 mm. The pit morphology was typical “pinpoint” pitting — only pinhole-sized externally, but expanded into 5-10 mm diameter deep pits internally. Bacterial testing confirmed SRB concentrations of 10⁶ cells/mL (industrial standard requires <10³). The cost to replace all SS304 piping with 316L was approximately $180,000.

Prevention: In MIC-sensitive environments, use molybdenum-containing stainless steel such as 316L (PREN ≥25); SS304 is not suitable for fountain piping. Perform acid pickling and passivation treatment on all welded joints. Design piping to avoid blind pipes (blind pipe length <5 times pipe diameter). Conduct monthly bacterial activity testing (ATP bioluminescence), and when >100 RLU, initiate sterilization procedures (UV-C or shock chlorination). Periodically inspect critical pipe areas with endoscopes.

Source: NACE International Paper No. 7253; ASTM International corrosion database

🇨🇳 2. Southern Chinese City — MIC Causes 30% Wall Thinning in Landscape Fountain Piping

Project Background: A landscape fountain at a city park in southern China (Pearl River Delta), built in 2017. The region has a hot, humid climate with an average annual temperature of 22-23°C and humidity of 75-85%. The fountain piping was 304 stainless steel (DN80-DN200), with recirculating water from the municipal supply.

Equipment Setup: After 2 years of operation, black flocculent deposits (FeS — SRB metabolic product) were discovered when cleaning the pump room strainer. A faint rotten egg odor (H₂S signature smell) was detected in the fountain water.

Root Cause: The use of 304 stainless steel (no molybdenum) was insufficient for MIC resistance in the hot, humid environment of southern China. The park fountain water was rich in organic matter from fallen leaves and pollen, providing ample nutrients for SRB. Chemical chlorination was inadequate (residual chlorine only 0.1-0.2 mg/L, standard recommends ≥0.5 mg/L), unable to inhibit biofilm formation.

Consequences & Losses: Ultrasonic testing revealed that approximately 32% of the inspected areas had wall thinning exceeding 30%. The most severe area had wall thickness reduced from 6 mm to 2.8 mm (53% thinning, approaching perforation). Remediation plan: replace pipe sections with >30% wall thinning (approximately 150 m), using 316L stainless steel. Install UV-C ultraviolet sterilization and periodic shock chlorination. Total remediation cost approximately ¥450,000.

Prevention: In hot, humid regions, fountain piping should uniformly use 316L stainless steel (minimum requirement); duplex stainless steel (2205) is recommended when budget allows. UV-C ultraviolet sterilization is significantly more effective than chemical chlorination for biofilm control (no resistance development, no disinfection byproducts). Design piping with drain ports at the lowest points. Establish a regular MIC monitoring program: quarterly ATP activity testing, semi-annual endoscopic inspection, and annual ultrasonic wall thickness spot checks.

Source: Third-party corrosion testing institution assessment report; Chinese Society for Corrosion and Protection MIC prevention special issue

🇺🇸 3. NASA — Stainless Steel Water System MIC Lessons and Guidelines

Project Background: NASA has encountered severe MIC problems in stainless steel water systems at multiple ground support facilities, including ground cooling water piping at Kennedy Space Center. Although NASA’s lessons and guidelines are aimed at aerospace facilities, they are equally applicable to fountain water systems.

Equipment Setup: NASA found that 304L and 316L stainless steel in the as-welded condition (without post-weld passivation) are extremely susceptible to MIC — microstructural changes in the heat-affected zone reduce corrosion resistance by more than 50%.

Root Cause: MIC risk exists when water bacterial concentrations exceed 10³ cells/mL. Discontinuity of fluid flow in piping (frequent start-stop, nighttime pump shutdown) is a catalyst for MIC — during pump shutdown, residual water in pipes becomes stagnant, and bacteria multiply rapidly.

Consequences & Losses: (Positive experience) NASA’s solution: mandatory post-weld chemical passivation + continuous chlorination (residual chlorine ≥1 mg/L) + periodic hot water flushing (70°C, 30 minutes) + monthly bacterial monitoring. NASA experience shows that a properly designed prevention program can reduce MIC risk by more than 90%.

Prevention: Comprehensively adopt 316L stainless steel (or higher grades). Install online residual chlorine monitoring and automatic dosing systems. Maintain water circulation (low flow) or fill with disinfectant during system shutdown. Mandatory post-weld chemical passivation + continuous chlorination + periodic hot water flushing + monthly bacterial monitoring.

Source: NASA Kennedy Space Center MIC Guidelines

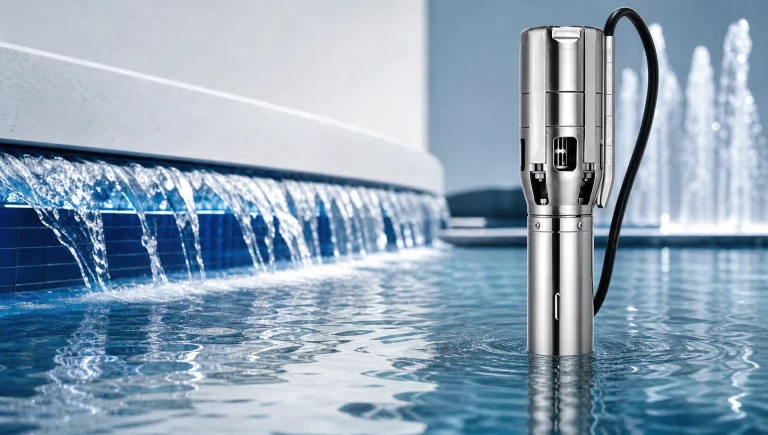

Avoiding the Problem at Its Root: New-Generation Submersible Pumps

Microbiologically influenced corrosion is the chronic erosion of metal components by nutrient-rich landscape water — biofilms and sulfate-reducing bacteria can riddle even stainless steel with pinholes. The submersible pump solution is more targeted in both material and protection: taking the submersible pump technology as an example, MIC-resistant alloy materials or duplex stainless steel impellers can be specified. The flow path design minimizes stagnant zones, reducing biofilm adhesion probability. The fully sealed unit reduces metal-water contact interfaces, and combined with periodic chlorination, MIC can be effectively controlled. For projects plagued by pitting perforation in eutrophic landscape water, material upgrade combined with structural optimization is a more reliable defense than simply adding corrosion inhibitors.

Conclusion & Selection Advice

As the technical analysis and international case studies in this article show, microbiologically influenced corrosion does not have to be managed reactively. A fully submerged architecture such as the submersible pump technology removes the root cause at the design stage: Fully Sealed Unit (Fewer metal-water interfaces, more controllable with chlorination), combined with MIC-Resistant Materials and Stagnation-Free Flow Path, makes it a strong candidate for both new fountains and retrofits of existing systems.

Owners and designers are advised to run a pump-type comparison early in the project and contact submersible pump technology technical support for a project-specific selection report.

Keywords: Microbiologically influenced corrosion · MIC · SRB · Pipe perforation · 316L stainless steel

Frequently Asked Questions (FAQ)

What is microbiologically influenced corrosion (MIC)?

MIC is the most insidious and dangerous form of corrosion in fountain piping systems. Bacteria (SRB sulfate-reducing bacteria, IOB iron-oxidizing bacteria, APB acid-producing bacteria) form bioelectrochemical cells on metal surfaces, producing localized pitting rates of several millimeters per year — 10-100 times that of uniform corrosion. SRB can cause pits 2-5 mm deep within 3-6 months, with pipe perforation possible in as little as 6 months.

How can MIC be identified in fountain piping?

Three key signals: black flocculent deposits on pipe inner walls (FeS deposits, SRB metabolic product); rotten egg odor in the water (H₂S smell); “pinpoint” pitting on pipe exteriors (pinhole-sized externally, 5-10 mm deep pits internally). Professional testing: ATP bioluminescence (>100 RLU requires treatment), qPCR quantitative PCR for bacterial gene abundance, coupon methods (metal coupons suspended for 60-90 days), and ultrasonic thickness gauging.

How can fountain pipe MIC be prevented?

Core measures: use molybdenum-containing 316L stainless steel (PREN ≥25) instead of 304 (PREN=18-20, insufficient MIC resistance); acid pickling and passivation of all welded joints (NASA data shows unpassivated heat-affected zones have >50% reduced corrosion resistance); design piping to avoid blind pipes (blind pipe length <5 times pipe diameter); UV-C ultraviolet sterilization (superior to chemical chlorination, no resistance development); monthly ATP bacterial activity monitoring; maintain low-flow circulation or fill with disinfectant during shutdown.

How significant are typical MIC incident losses?

Florida resort case: SS304 stainless steel piping developed 17 perforations in 3 years, with replacement to 316L costing approximately $180,000. Southern China case: 32% of inspected areas had wall thinning exceeding 30% (most severe at 53%, approaching perforation), with 150 m of pipe replacement + UV-C sterilization remediation costing approximately ¥450,000. NASA experience shows that a properly designed prevention program can reduce MIC risk by more than 90% — prevention investment is far lower than incident losses.

Can the submersible pump technology really prevent microbiologically influenced corrosion?

Yes. The submersible pump technology operates fully submerged, which removes the fundamental trigger of microbiologically influenced corrosion at the design level: first, MIC-Resistant Materials — Optional duplex stainless steel and specialized coatings resist pitting perforation; second, Stagnation-Free Flow Path — Reduced biofilm adhesion sites; and third, Fully Sealed Unit — Fewer metal-water interfaces, more controllable with chlorination. Instead of managing symptoms, these three design features make the problem structurally unlikely to occur. For project-specific sizing, contact the pump engineering specialists for a full evaluation.
